Description

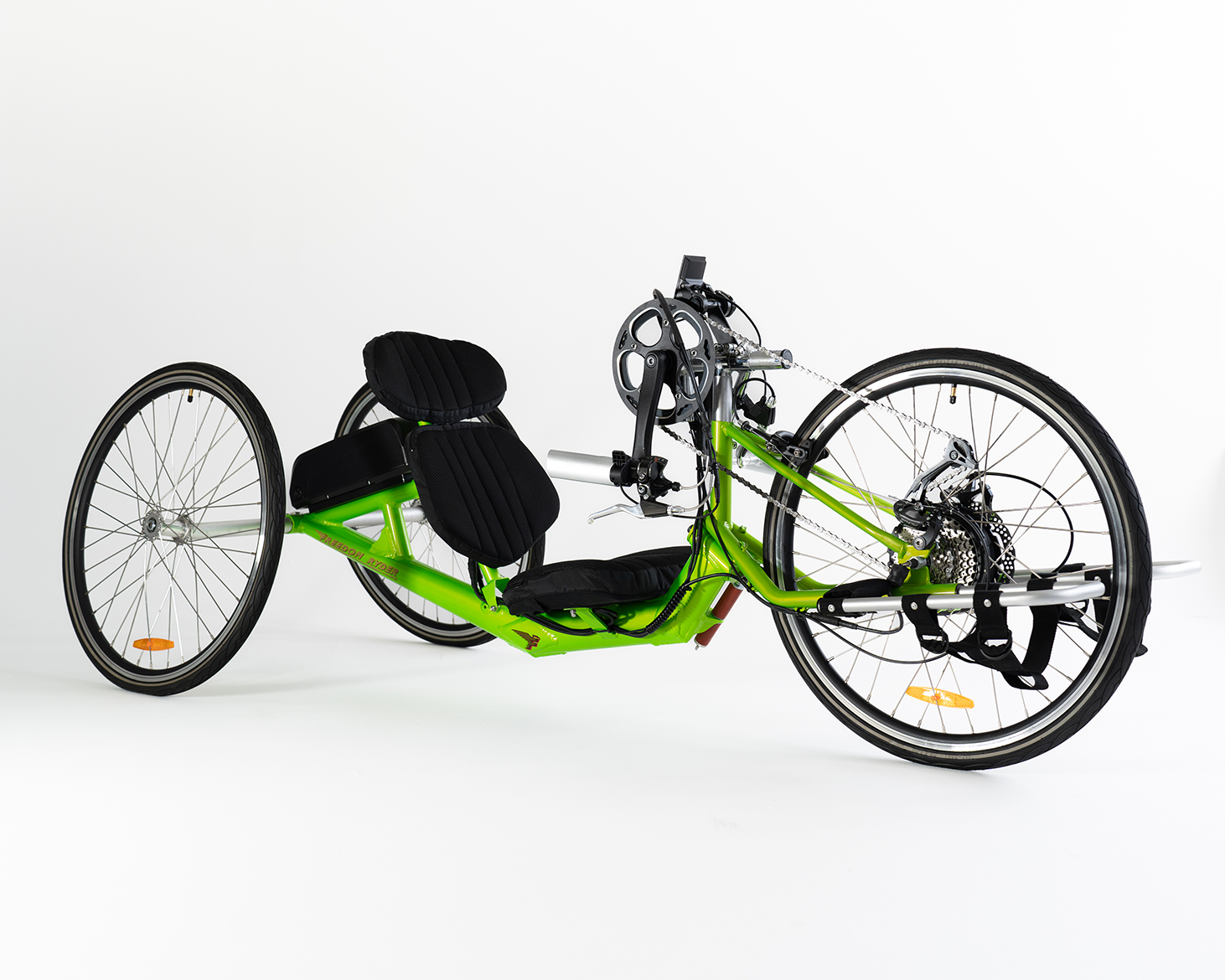

E-1 Electric Handcycle Specs
| Weight | 64lbs with battery, 55lbs without battery |
| Dimensions | 78” long, 31.5” wide, ~30” tall depending on configuration of bottom bracket assembly |
| Rear Frame | 7075 Aircraft Grade Aluminum frame stress tested at 500lbs for over 400,000 cycles (it’s really really strong) |
| Front Frame | Chromoly Steel |
| Wheelset | 26” x 1.5” |
| Electric Kit | 500w hub motor, 48v, 14Ah battery, Full Color Dash |

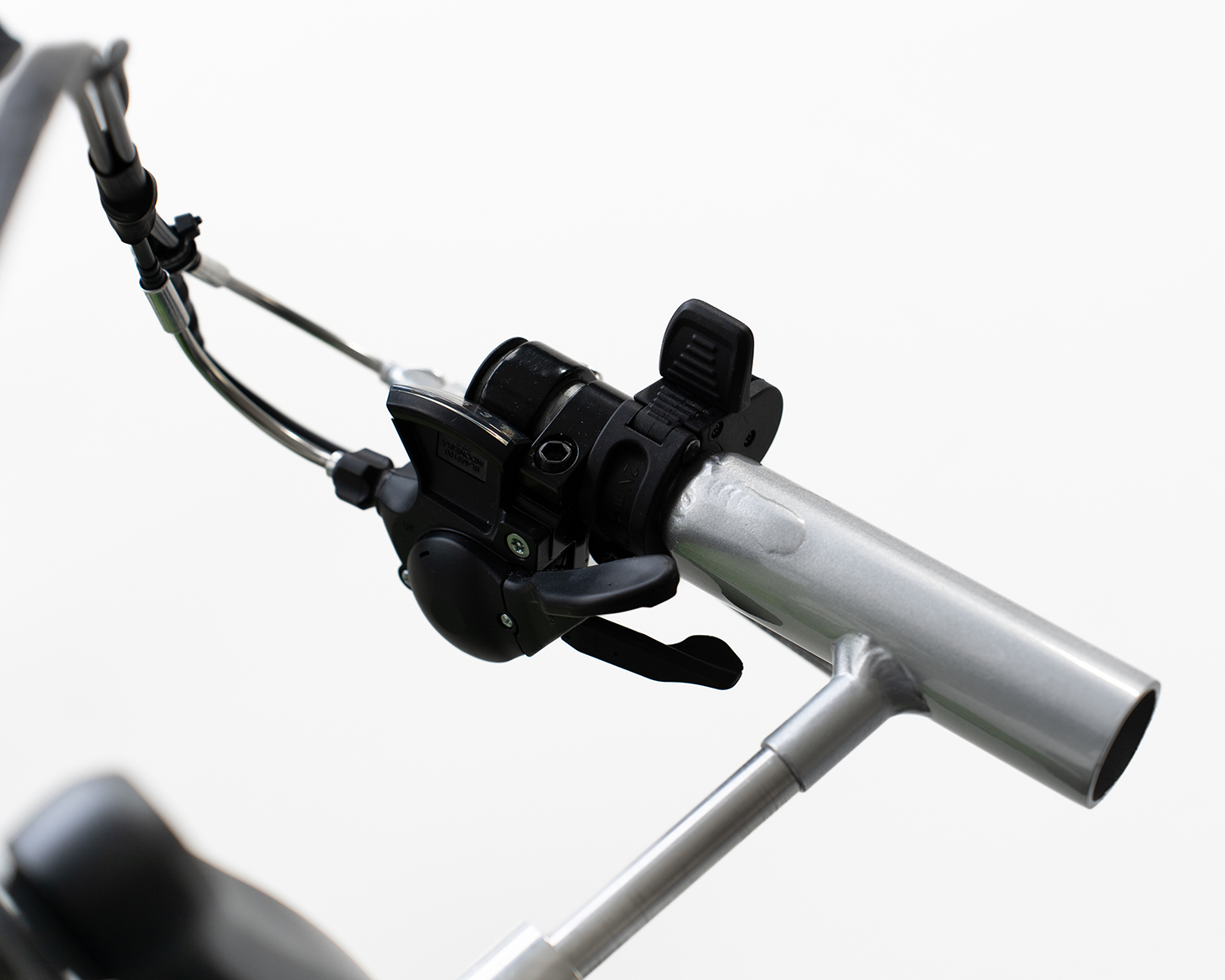

| Throttle | Thumb Throttle on Right Pedal |
| Drivetrain | 1×9 |
| Crank Arms | 170mm |
| Rear Derailleur | Shimano RD-T3000-SGS, 9s |
| Right Shift Lever | Shimano SL-M3100-R 9s |
| Disc Brake | Teboka MD-M320 |
| Disc Brake Rotor | 180mm |
| Caliper Brake | Shimano BR-R451 R |
| Chain | Shimano CN-HG93 |
| Cassette | Shimano CS-HG400-9 11-32 9s |
| Seat | Memory Foam with Perforated & Breathable Cushion Cover |
Information
Why Choose the E-1?

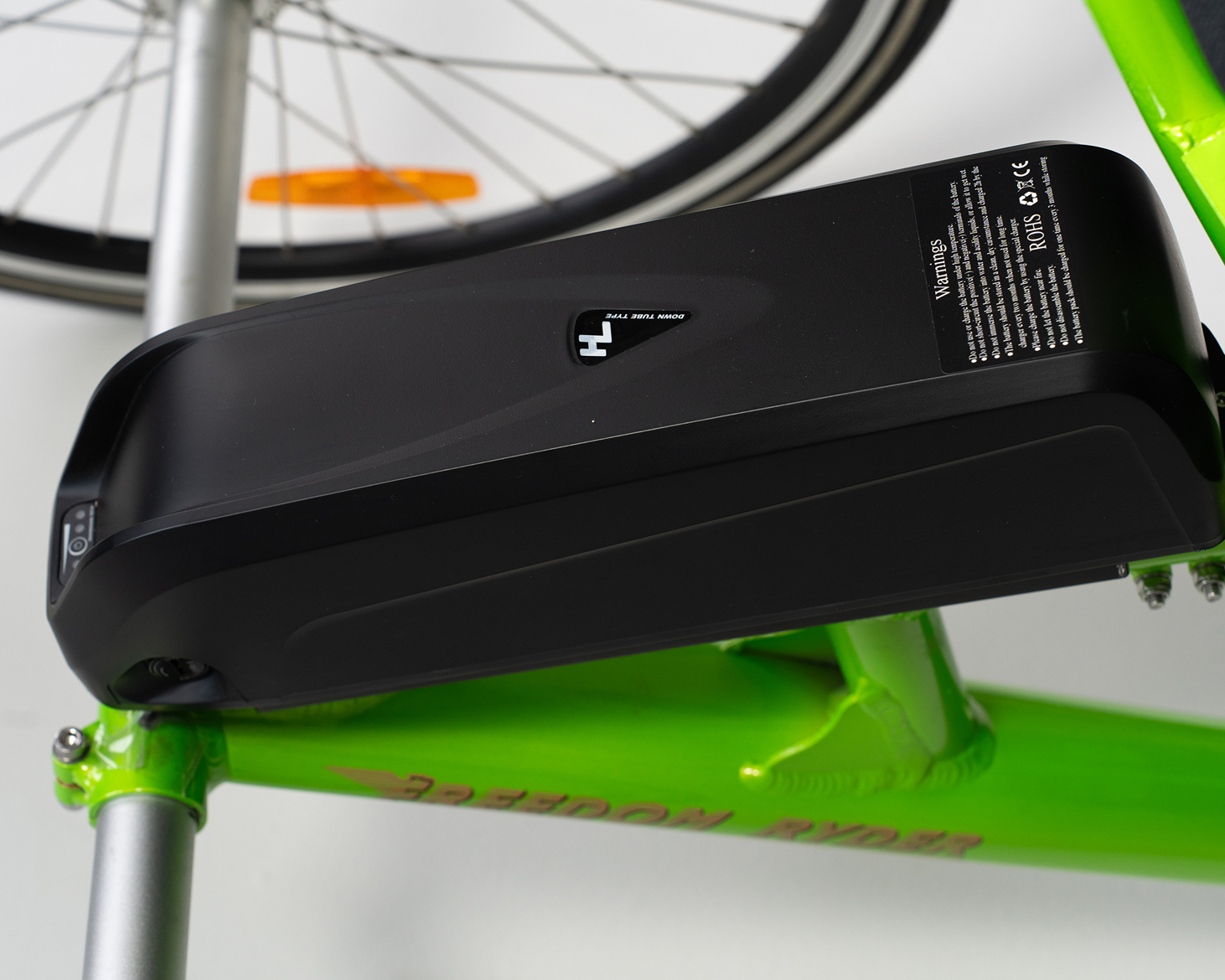

- ● Innovative Design: A motor integrated into the front wheel hub and a rear-mounted battery for optimal balance and power.

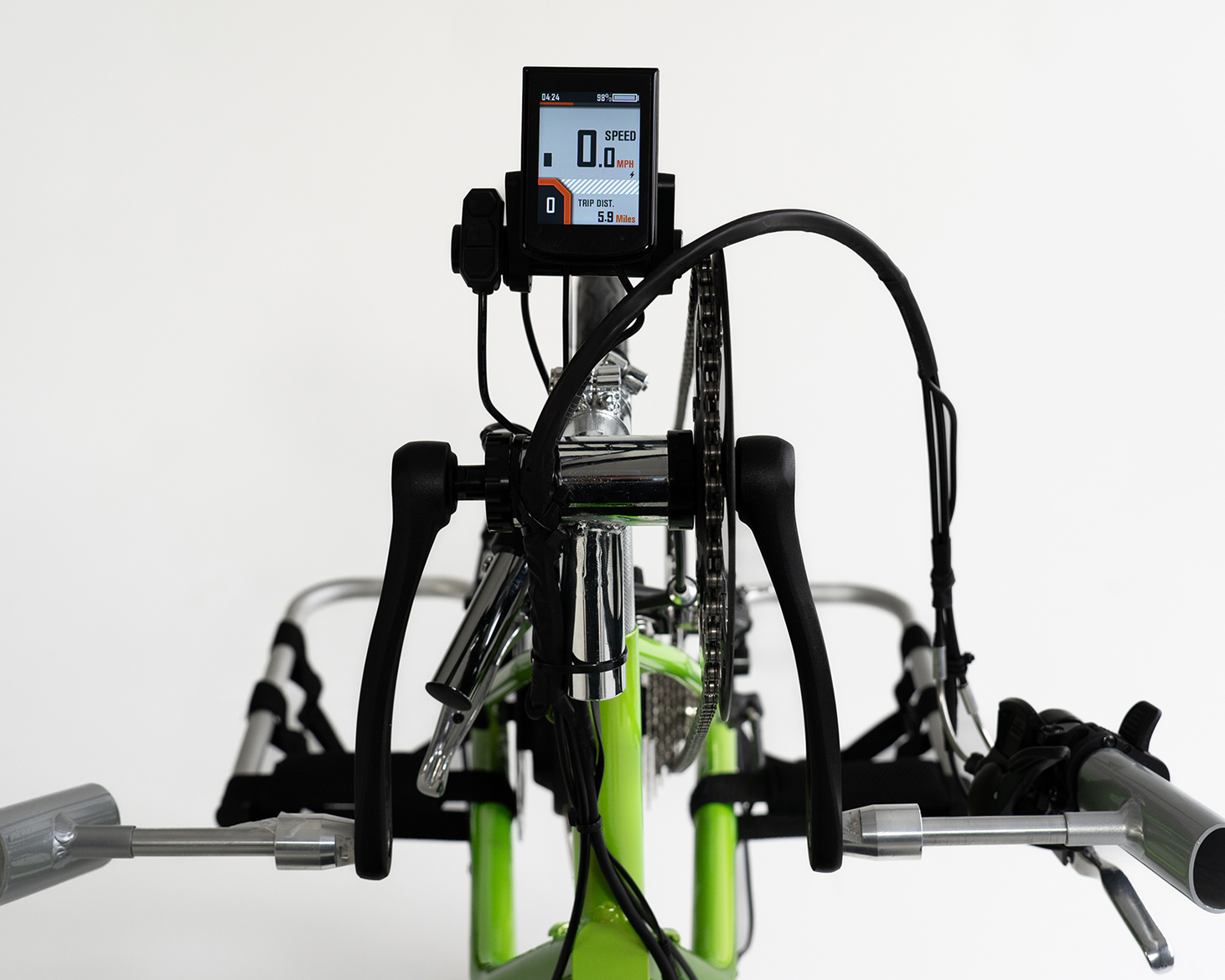

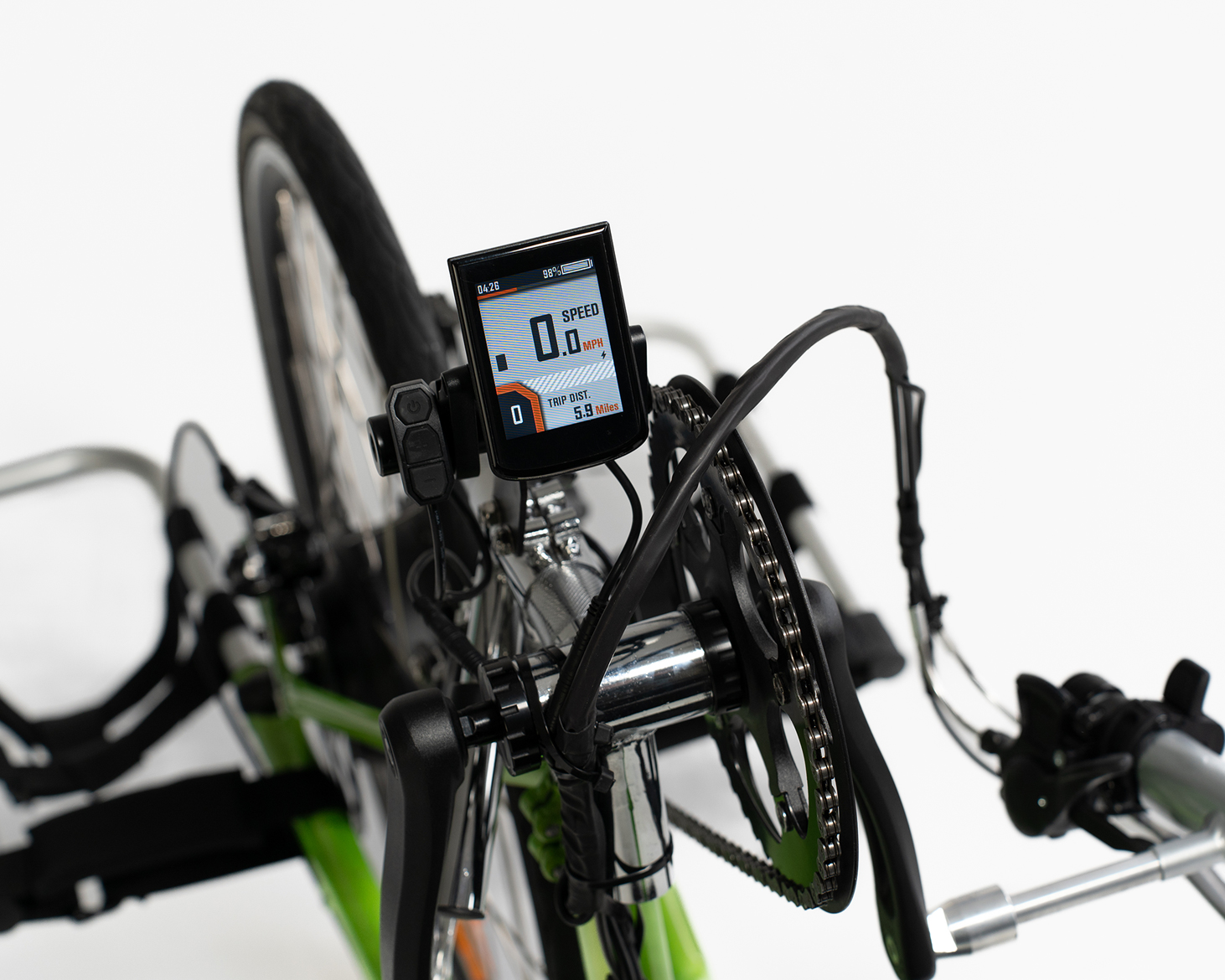

- ● Effortless Operation: Simple 3-button dashboard for on/off, 5 assist levels, and ride stats.
- ● Unmatched Performance: Conquer steep hills, enjoy longer rides, and eliminate shoulder strain.
The E-1 makes every ride special. As one rider said, “Freedom Ryder has done it again!” With outstanding feedback, this system sets a new standard and represents the future of handcycling.
The E-1’s electric assist isn’t just a motor—it’s an integral part of your ride. Designed for seamless integration, the system enhances your workout at your chosen level while providing added support when you need it most.
How It Works:
- ● Torque-Sensing Technology: Automatically detects your pedaling effort and delivers power assist (levels 1-5) for a natural and smooth boost.
- ● Throttle Option: Engage full power instantly with a lever when needed, no pedaling required. Feel like you’ve caught a magic tailwind—hills disappear, long rides become easier, and keeping up with friends is a breeze. Whether you need a little help or full assist, the E-1 makes

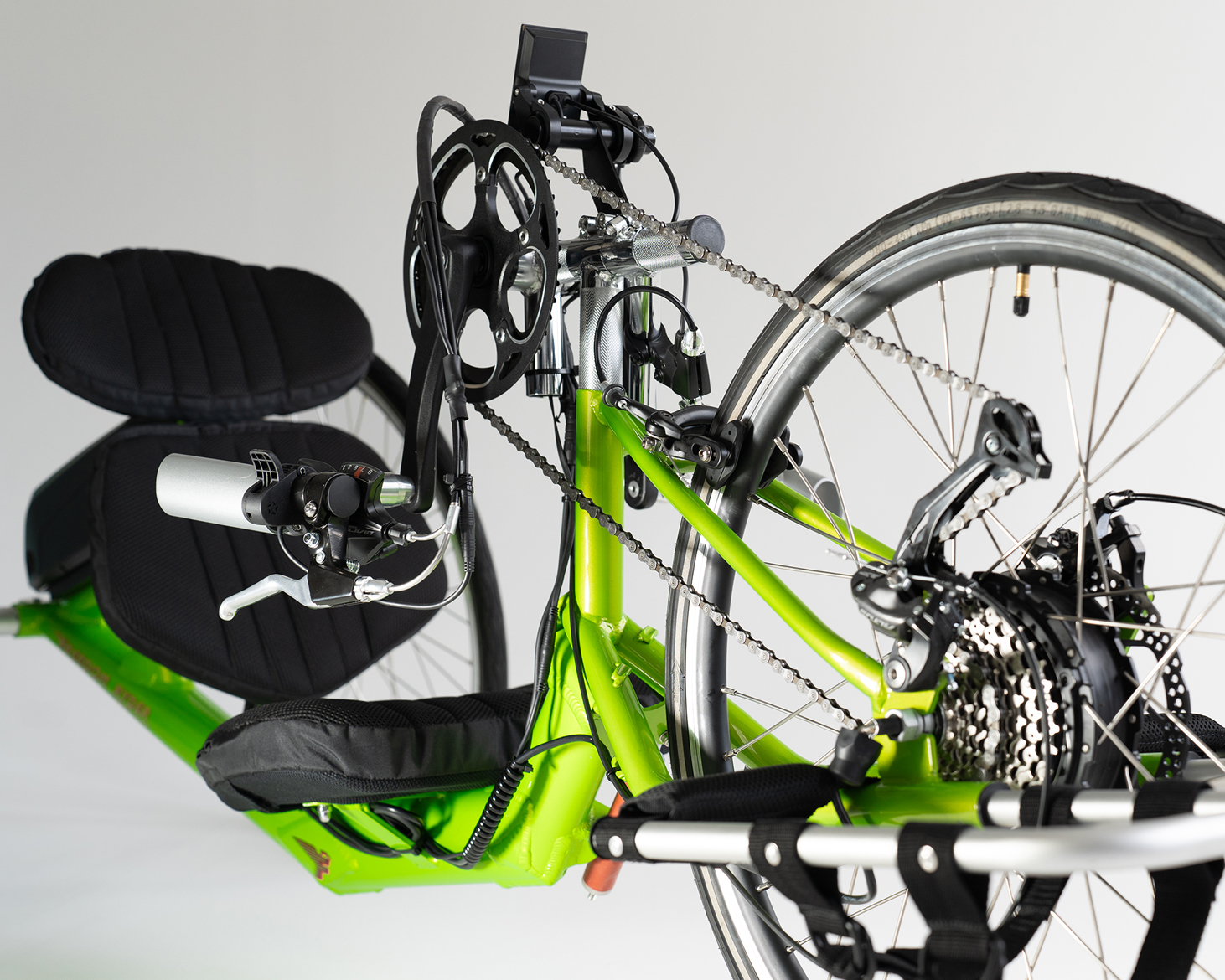

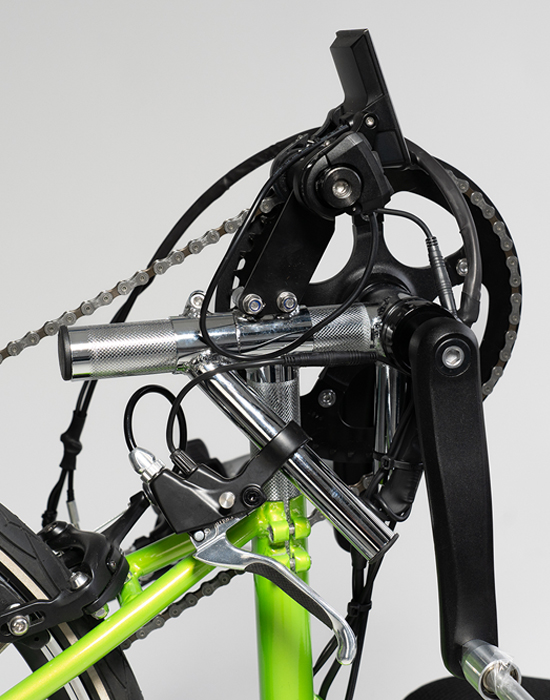

every ride an unforgettable experience. Test it out, and you’ll know why riders can’t stop smiling and saying, “I want one!” All our handcycles feature a patented cable routing system designed for simplicity and durability. - ● Out of Sight: Keeps cables out of your field of view for an uncluttered experience.
- ● Minimal Movement: Prevents flopping and reduces wear for long-lasting performance.
- ● Balanced Feel: Delivers smooth, natural pedaling as if no cables are attached. Enjoy a cleaner, more refined riding experience with every turn of the cranks. The E-1 line is equipped with premium Shimano components for exceptional performance and reliability.

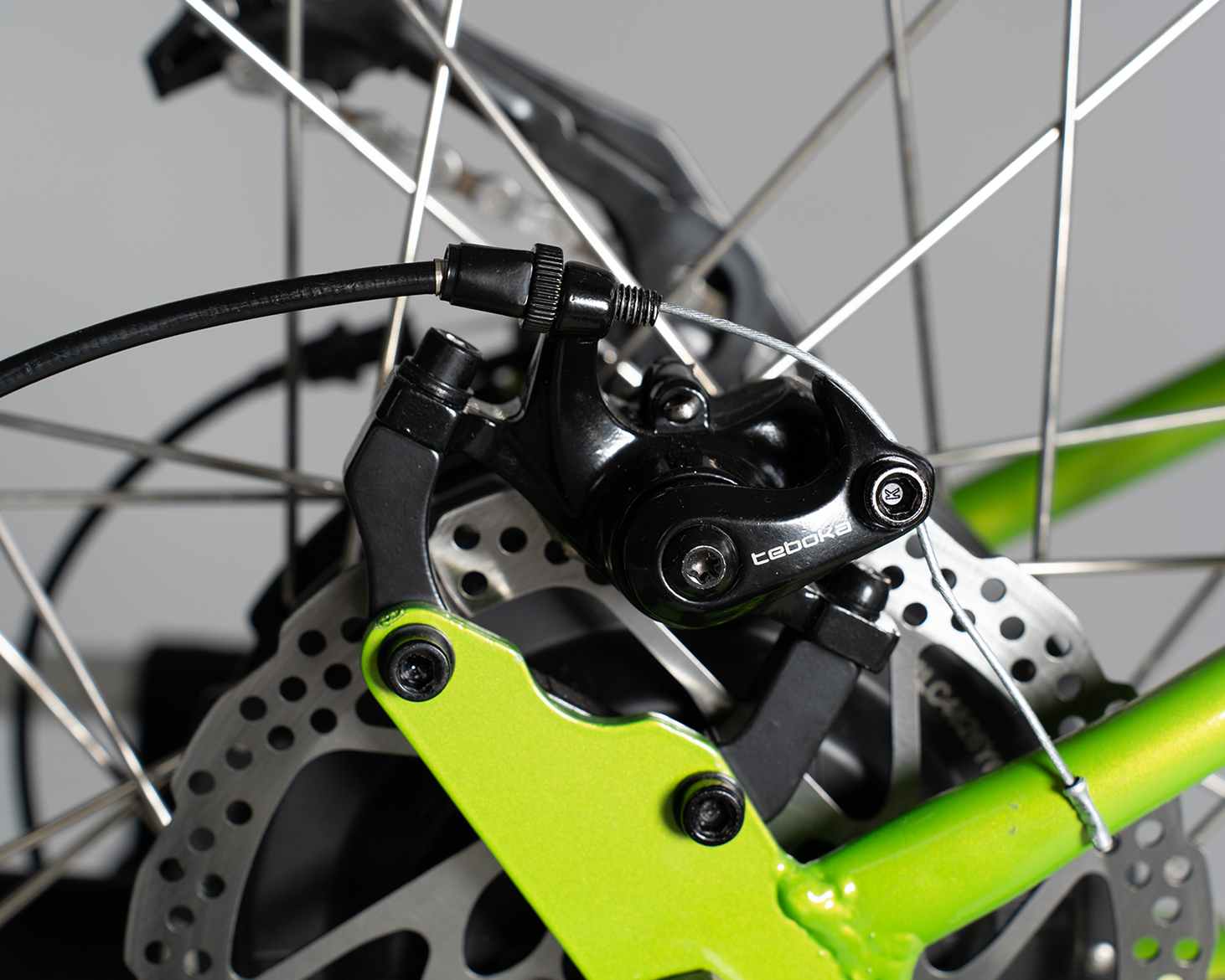

- ● Disc Brake Included: High-quality disc brakes come standard!
Experience unmatched quality and safety with every ride
